Cylinder replacement in Barcelona
The cylinder is the barrel the key turns. It is changed to recover control of the access without touching the case when that case is still sound.
If a key is lost, copied without control or the turn is stiff, the replacement is the barrel. If the key turns and the latch will not throw, the fault is in the case: that is lock replacement or repair.
Labour €46 + VAT. Parts: standard from €32 + VAT; security from €98 + VAT. Travel included in Barcelona. Detail on the prices page.
Barrel faults, not case faults
A key that is hard to turn
Worn pins or dirt. Forcing your wrist every day ends up snapping the key.
A cylinder broken flush with the faceplate
The remainder is extracted and a new one of the correct length is fitted.
A key set out of control
Works, a previous tenant or a loss. The new barrel leaves those copies outside.
Where a euro-profile fits
A flat with a mortise lock
The usual size is 30-30 to 40-40. One side longer than the other is common on thick doors.
A reinforced door
It often needs a security cylinder and, if the projection is excessive, an escutcheon.
A shop
Shutter and pedestrian door may have different barrels. List which you want changed.
Limits of a cylinder change
No key and locked out
The door is opened first (opening) and then the barrel is changed.
A case that will not throw
A new cylinder does not fix a broken bolt. That is diagnosed first.
An electronic cylinder
We do not fit them. If the fault is a battery or a reader, it is not this trade.
Models we measure and fit
TESA T60, T80, TK100
The most requested in Barcelona. A TK100 is not cut by eye: each side is measured.
CISA ASIX / RS3, standard Yale, ISEO R6 / F6
Replacement by cam and length. An ASIX is not swapped for a generic barrel without seeing the case.
Sample quote
Example: security cylinder in Les Corts
Reinforced flat door, 35-35 measurement, booked visit at 10:00. A security cylinder is left and the escutcheon the projection needed.
€220.22 incl. VAT
If you do not want an escutcheon and the barrel does not project, the table example is €174.24 incl. VAT.

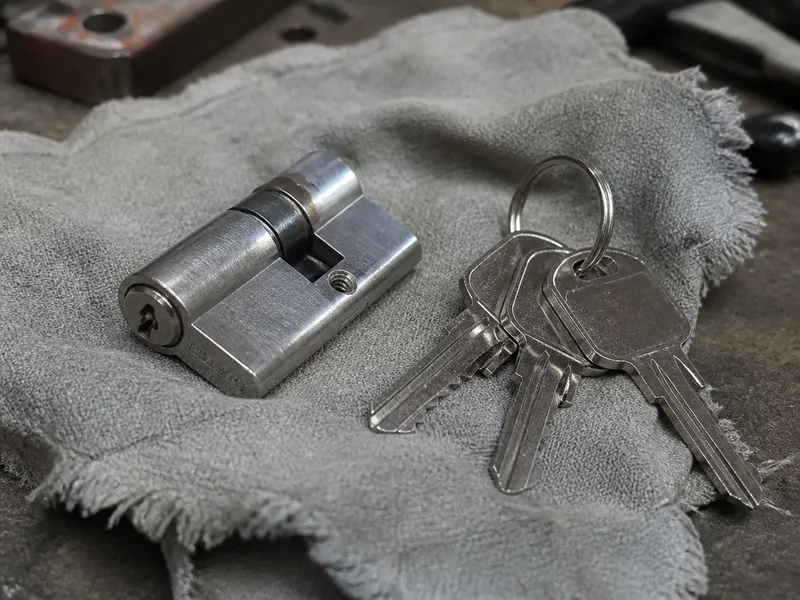

Job photographs
How we work
Measure the barrel
Inside length, outside length and cam.
Remove the old one
Retaining screw and withdrawal without forcing the lock.
Fit and test keys
A turn from both sides of the door.
Symptom → usual job
| Symptom | Usual job | Page |
|---|---|---|
| Key lost, snapped in the cylinder, or will not enter | Opening. If the barrel is beyond use, a cylinder change in the same visit. | Door opening |
| You are locked out late at night or on a holiday | 24-hour call-out. The time-slot supplement is in the night-opening example. | 24-hour locksmiths |
| The key turns but the latch will not throw | Usually the lock case, not the cylinder. Lock replacement or repair. | Lock replacement |
| Keys that have circulated, or a cylinder that turns stiffly | Cylinder change. The case is left if it still throws. | Cylinder replacement |
| A new door, an empty pocket, or a case that needs a new cut | Installation: measure, pocket and fix. It is not a swap in the same pocket. | Lock installation |
| The latch scrapes the frame or the faceplate is loose, and the key is fine | Repair: regulate or unjam. If the case is cracked, it becomes a replacement. | Lock repair |
| You want more locking points and the leaf can take them | A security lock (the case). A security cylinder is a different part. | Security locks |
| A shutter, an office or a community portal | The same trade, different coordination: authorisation and trading hours. | Shops, offices and communities |
Frequently asked questions
How many keys are supplied?
The standard example includes 3. The security one, 5. Another set is stated on the visit.
The same key for several doors?
Only if the cylinders are compatible. It is quoted once they are seen.
Does a cylinder change open the door if I am locked out?
No. The access is opened first; then the barrel is replaced.
What warranty does the new cylinder have?
As goods we supply, the new barrel has the legal conformity warranty against Cerrajería Efectiva, not only the manufacturer’s commercial warranty of the model. Labour on the change has twelve months if the use is as agreed.
Related services
Lock replacement
The case that moves the bolts is replaced. The cylinder is a different part: if only the barrel has failed, the whole lock does not need changing.
Security locks
A security case is not a security cylinder. Here we install or replace the multi-point mechanism when the edge and frame can hold it.
